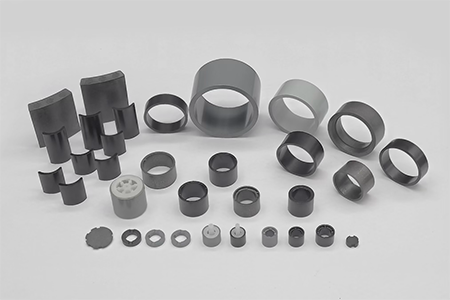

NdFeB Plastic계 Magnet

NdFeB Plastic계 Magnet Identification

※ 표를 좌우로 움직여 주세요.

No.	Category	Unit	NS250	NS260	NS270	NS760
No.	Binder	/	Nylon-12			PPS
1	Residual Induction Br	(kGs)	5.05	5.30	5.40	5.15
1	Residual Induction Br	mT	5.05	5.30	5.40	5.15
2	Coercive Force b Hc	(kOe)	4.0	4.1	4.2	4.4
2	Coercive Force b Hc	kA/m	318	326	334	358
3	Coercive Force iHc	(kOe)	8.2	8.3	8.4	12.1
3	Coercive Force iHc	kA/m	653	660	668	963
4	Energy Product (BH)max	MGOe	5.40	6.00	6.40	5.75
4	Energy Product (BH)max	kJ/㎤	43	48	51	46
5	Density	(g.cm3)	5.00	5.20	5.34	5.10
6	Tensile Strength	Mpa	60	45	42	40
7	Flexural Strength	Mpa	100	80	65	62
8	IZOD Impact Strenght	(kgf.cm/㎠)	14	7.5	6.2	3.7

Nd Compaction Magnet Identification

※ 표를 좌우로 움직여 주세요.

Grade	Remanence		Coercive Force		Intrinsic Coercive Force		Max. Energy Product		Max Working Temperature
	Br		Hcb		Hcj		(BH)Max		Max Working Temperature
	kGs	mT	kOe	kA/m	kOe	kA/m	MGOe	kJ/m3	℃
NS-2	3.0-4.0	300-400	2.0-3.0	160-240	5.5-7.5	440-600	2.4-3.3	19-26	160
NS-3	4.0-5.1	400-510	2.7-3.5	216-280	6.3-8.5	504-680	3.0-4.0	24-32	160
NS-4	4.6-5.2	460-520	2.8-3.6	224-288	6.3-8.5	504-680	3.8-4.4	30-35	160
NS-5	4.7-5.5	470-550	3.0-4.5	240-360	6.5-8.5	520-680	4.7-5.5	37-44	160
NS-6	5.5-6.5	550-650	4.0-4.7	320-376	7.5-9.0	600-720	5.5-6.5	44-52	160
NS-7	5.5-6.5	550-650	4.0-5.1	320-408	7.0-8.5	560-680	6.5-8.0	52-64	160
NS-8	6.2-6.7	620-670	5.0-5.7	400-456	8.0-10.0	640-800	8.0-9.5	64-76	160
NS-8A	6.2-6.8	620-680	5.0-6.0	400-480	13.0-16.0	1040-1280	8.2-9.2	65-73	180
NS-9L	6.7-7.3	670-730	4.5-5.2	360-416	6.5-8.0	520-640	8.6-9.4	68-75	120
NS-9	6.5-7.0	650-700	5.2-5.7	416-456	8.5-10.0	680-800	8.5-9.5	68-76	160
NS-9H	6.5-7.0	650-700	5.4-6.1	432-488	11.5-13.0	920-1040	8.9-10.0	71-80	180
NS-10H	6.5-7.1	650-710	5.4-6.0	432-480	9.8-12.0	784-960	9.3-10.3	74-82	180
NS-10	6.7-7.2	670-720	5.3-6.0	424-480	8.0-10.0	640-800	9.5-10.5	76-84	160
NS-11	6.8-7.4	680-740	5.0-6.0	400-480	8.0-10.0	640-800	10.0-11.0	80-88	160
NS-12D	7.2-7.7	720-770	5.5-6.5	440-520	9.0-11.0	720-880	11.0-12.0	88-96	160
NS-12L	7.3-7.7	730-770	4.6-5.4	368-432	6.5-8.0	520-640	10.0-11.0	80-88	120
NS-13L	7.8-8.3	780-830	5.0-6.0	400-480	6.0-8.0	480-640	11.0-13.0	88-104	120

NdFeB MAGNET Appliance Parts

NdFeB Sintered Magnet

NdFeB Sintered Magnet Identification

※ 표를 좌우로 움직여 주세요.

GRADE		Residual induction				Coercive Force				Intrinsic Coercive		Mac Energy Product				Max Work Temperature
		Br				Hcb				iHc		BH Max
		KGs		T		Koe		KA/m		Koe	KA/m	MGOe		KJ/m3
		Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	℃
N Series	NS35N	11.8	12.1	1.18	1.21	11	11.4	876	907	12	955	33	35	263	279	80
	NS38N	12.3	12.6	1.23	1.26	11.4	11.7	907	931	12	955	36	38	287	302	80
	NS40N	12.6	12.9	1.26	1.29	11.6	11.9	923	947	12	955	38	40	302	318	80
	NS42N	13	13.3	1.3	1.33	11.9	12.3	947	979	12	955	40	42	318	334	80
	NS45N	13.3	13.6	1.33	1.36	11.8	12.1	939	963	12	955	43	45	342	358	80
	NS48N	13.5	14	1.35	1.4	11.8	12.1	939	963	12	955	45	48	358	382	80
	NS50N	13.9	14.2	1.39	1.42	9.8	10.5	780	836	11	955	47	50	374	398	80
	NS53N	14.2	14.4	1.42	1.44	9.8	10.5	780	836	11	875	49	53	398	421	80
	NS55N	14.4	14.6	1.44	1.46	9.8	10.5	780	836	11	875	53	55	421	438	80
M Series	NS38M	12.3	12.6	1.25	1.26	11.7	12.2	931	971	14	875	36	38	287	302	100
	NS40M	12.6	12.9	1.26	1.29	11.8	12.3	939	979	14	1114	38	40	302	3181	100
	NS42M	13	13.3	1.3	1.33	12	12.4	955	987	14	1114	40	42	318	334	100
	NS45M	13.3	13.6	1.33	1.36	11.8	12.1	939	963	14	1114	43	45	342	358	100
	NS48M	13.6	13.9	1.36	1.39	12.3	12.9	979	1027	14	1114	45	48	358	382	100
	NS50M	13.9	14.2	1.39	1.41	11.8	13	939	1035	13	1035	47	50	374	398	100
	NS52M	14.2	14.4	1.42	1.44	11.8	13	939	1035	13	1035	49	52	398	414	100
	NS54M	14.3	14.5	1.43	1.45	11.8	13	939	1035	13	1035	51	53	410	421	100
H Series	NS30H	10.8	11.2	1.08	1.12	10.2	10.7	812	852	17	1353	28	30	223	239	120
	NS35H	11.8	12.1	1.18	1.21	11.1	11.6	844	923	17	1353	33	35	263	279	120
	NS38H	12.3	12.6	1.23	1.26	11.7	12.1	931	963	17	1353	36	38	287	302	120
	NS40H	12.6	13	1.26	1.3	11.5	12	915	955	17	1353	38	40	302	318	120
	NS42H	12.8	13.1	1.28	1.31	11.5	12	915	955	16	1273	40	42	318	334	120
	NS44H	13.2	13.5	1.32	1.35	11.5	12	915	955	16	1273	42	45	334	358	120
	NS46H	13.4	13.7	1.34	1.37	12.6	13	1003	1035	16	1273	44	46	350	366	120
	NS48H	13.6	13.9	1.36	1.39	13.3	13.2	1035	1050	16	1273	45	48	358	382	120
	NS50H	13.8	14.1	1.38	1.41	13.1	13.5	1042	1074	16	1273	47	50	374	398	120
	NS52H	14.2	14.4	1.42	1.44	13.5	13.8	1074	1098	16	1273	49	52	398	414	120
	NS55H	14.4	14.6	1.44	1.46	13.8	14.1	1098	1122	16	1273	53	55	421	438	120

SH Series	NS55SH	14.4	14.6	1.44	1.46	13.8	14.1	1098	1122	16	1273	53	55	421	438	120
	NS30SH	10.8	11.2	1.08	1.12	10.2	10.7	812	852	20	1592	28	30	223	239	150
	NS35SH	11.7	12	1.17	1.2	11.1	11.6	884	923	20	1592	33	35	263	279	150
	NS38SH	12.3	12.6	1.23	1.26	11.7	12.1	831	963	20	1592	36	38	287	302	150
	NS40SH	12.6	13	1.26	1.3	12	12.3	955	979	20	1592	38	40	302	318	150
	NS42SH	12.8	13.1	1.28	1.31	12.1	12.4	963	987	20	1592	40	42	318	334	150
	NS44SH	13.2	13.5	1.32	1.35	12.4	12.8	987	1019	20	1592	42	44	334	350	150
	NS45SH	13.3	13.6	1.33	1.36	12.8	13.2	1019	1050	20	1592	43	45	342	358	150
	NS48SH	13.6	13.9	1.36	1.39	13.2	13.5	1050	1074	20	1592	45	48	358	382	150
	NS50SH	14	14.2	1.4	1.42	13.5	13.8	1074	1098	20	1592	47	50	374	398	150
	NS52SH	14.2	14.4	1.42	1.44	13.8	14.1	1098	1122	20	1592	49	52	390	414	150
UH Series	NS28UH	10.5	10.9	1.05	1.09	10	10.4	796	828	25	1989	26	28	207	223	180
	NS30UH	10.8	11.2	1.08	1.12	10	10.3	796	820	25	1989	28	30	223	239	180
	NS33UH	11.1	11.5	1.11	1.15	10.5	10.8	836	860	25	1989	31	33	247	263	180
	NS35UH	11.7	12	1.17	1.12	11.1	11.6	884	923	25	1989	33	35	263	279	180
	NS38UH	12.3	12.6	1.23	1.26	11.7	12.1	931	963	25	1989	36	38	287	302	180
	NS39UH	12.4	12.7	1.24	1.27	11.7	12.1	931	963	25	1989	36	38	286	302	180
	NS40UH	12.6	13	1.26	1.3	12	12.3	955	979	25	1989	38	40	302	318	180
	NS42UH	12.8	13.1	1.28	1.31	12.1	12.4	963	987	25	1989	40	42	318	334	180
	NS45UH	13.2	13.5	1.32	1.35	12.4	12.6	987	1019	25	1989	43	45	342	358	180
	NS48UH	13.6	13.8	1.39	1.38	12.8	12.8	1019	1050	25	1989	45	48	358	382	180
	NS50UH	14	14.2	1.4	1.42	13.5	13.2	1074	1098	25	1989	47	50	374	398	180
	NS52UH	14.2	14.4	1.42	1.44	13.8	13.8	1098	1122	25	1989	49	52	390	414	180
EH Series	NS30EH	10.8	11.2	1.08	1.12	10	10.3	796	820	30	2387	28	30	223	239	200
	NS33EH	11.1	11.5	1.11	1.15	10.5	10.8	836	860	30	2387	31	33	247	263	200
	NS35EH	11.7	12.2	1.17	1.22	11.1	11.6	884	923	30	2387	33	35	263	279	200
	NS38EH	12.3	12.5	1.23	1.25	11.6	11.8	891	931	30	2387	35	38	279	302	200
	NS40EH	12.6	13	1.26	1.3	12	12.3	955	979	30	2387	38	40	302	318	200
	NS42EH	12.8	13.1	1.28	1.31	12.4	12.4	963	987	30	2387	40	42	318	334	200
	NS44EH	13.1	13.4	1.31	1.34	12.3	12.7	979	1010	30	2387	42	44	334	350	200
	NS46EH	13.3	13.6	1.33	1.36	12.5	12.9	995	1026	30	2387	44	46	350	366	200
	NS48EH	13.5	13.8	1.35	1.38	12.8	13.1	1019	1043	30	2387	46	48	366	382	200
AH Series	NS30AH	10.8	11.2	1.08	1.12	10	10.3	796	820	30	2387	28	30	223	238	230
AH Series	NS33AH	11.1	11.5	1.11	1.15	10.5	10.8	836	860	35	2387	31	33	247	263	230
HPSeries	NS35HP	11.9	12.2	1.19	1.22	11.2	11.7	891	931	16	1273	34	36	272	279	110
	NS38HP	12.4	12.7	1.24	1.27	11.8	12.2	939	971	16	1273	37	39	296	302	110
	NS40HP	12.6	12.9	1.26	1.29	12	12.3	955	979	16	1273	39	41	328	328	100
