Ferrite Plastic Magnet Material Identification

※ 표를 좌우로 움직여 주세요.

No.	Category	Unit	SKPM-1812	SKPM-1612	SKPM-1512	SKPM-1806	NS-14P	NS-17P
No.	Binder	/	Nylon-12			Nylon-6	PPS
1	Residual Induction Br	(kGs)	2.85	2.50	2.40	2.83	2.45	2.80
1	Residual Induction Br	mT	2.85	2.50	2.40	2.83	2.45	2.80
2	Coercive Force b Hc	(kOe)	2.25	1.90	1.80	2.25	2.00	2.10
2	Coercive Force b Hc	kA/m	1.79	151	143	179	159	167
3	Coercive Force iHc	(kOe)	2.95	2.45	2.30	2.90	2.80	2.90
3	Coercive Force iHc	kA/m	235	195	183	231	223	231
4	Energy Product (BH)max	MGOe	1.85	1.62	1.5	1.82	1.4	1.75
4	Energy Product (BH)max	kJ/㎤	15	13	12	14	11	14
5	Density	(g.cm3)	3.50	3.2	2.7	3.48	3.4	3.7
6	Tensile Strength	Mpa	50	60	65	72	55	54
7	Flexural Strength	Mpa	100	115	120	144	115	105
8	IZOD Impact Strenght	(kgf.cm/㎠)	22	25	27	16	13.5	8.5

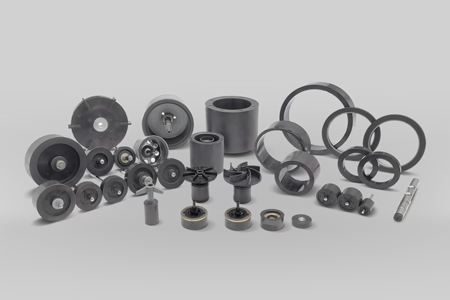

Ferrite Magnet Appliance Parts

Ferrite Sintered Magnet

Ferrite Sintered Magnet Identification

※ 표를 좌우로 움직여 주세요.

Grade	Residual Flux Density		Coercive Force				Max. Energy Product
	Br		Hc		Hcj		(BH)Max
	KG	T	kO2	kA/m	kO2	kA/m	MGOe	kJ/m³
NSF-1B	3.9 - 4.2	0.39 - 0.42	1.8 - 2.2	143 - 176	-	-	3.5 - 4.1	27.8 ~ 32.7
NSF-2B	3.8 - 4.1	0.38 - 0.41	2.8 - 3.4	222 - 271	2.8 - 3.6	222 - 287	3.4 - 4.0	27.0 ~ 31.9
NSF-2BA	4.2 - 4.4	0.42 - 0.44	2.2 - 2.6	175 - 207	-	-	4.2 - 4.6	33.4 ~ 36.7
NSF-2BB	4.1 - 4.3	0.41 - 0.43	2.8 - 3.2	222 - 255	-	-	4.0 - 4.4	31.8 ~ 35.1
NSF-2BC	3.6 - 3.8	0.36 - 0.38	3.2 - 3.6	255 - 287	4.0 - 4.4	318 - 350	3.0 - 3.4	23.9 ~ 27.1
NSF-2BD	3.8 - 4.0	0.38 - 0.40	3.2 - 3.6	255 - 287	3.4 - 3.8	270 - 303	3.4 - 3.8	27.0 ~ 30.3
NSF-2BF	3.6 - 3.8	0.36 - 0.38	3.4 - 3.8	270 - 303	4.8 - 5.2	381 - 414	3.0 - 3.4	23.8 ~27.0
NSF-5BB	4.2 - 4.4	0.42 - 0.44	2.8 - 3.1	222 - 247	2.8 - 3.2	222 - 255	4.2 - 4.6	33.4 ~ 36.7
NSF-5BD	4.0 - 4.2	0.40 - 0.42	3.2 - 3.6	225 - 287	3.4 - 3.8	270 - 303	3.8 - 4.2	30.3 ~ 33.5
NSF-5BE	3.9 - 4.1	0.39 - 0.41	3.5 - 3.8	278 - 303	3.9 - 4.2	310 - 334	3.7 - 4.1	29.4 ~ 32.6
NSF-5BF	3.8 - 4.0	0.38 -.0.40	3.5 - 3.8	278 - 303	4.4 - 4.8	350 -382	3.4 - 3.8	27.0 ~ 30.3
NSF-6BB	4.2 - 4.4	0.42 - 0.44	2.9 - 3.3	230 - 263	3.0 - 3.4	238 - 270	4.2 - 4.6	33.5 ~ 36.7
NSF-6BD	4.1 - 4.3	0.41 - 0.43	3.2 - 3.6	254 - 287	3.4 - 3.8	270 - 303	4.0 - 4.4	31.5 ~ 347
NSF-6BE	4.0 - 4.2	0.40 - 0.42	3.5 - 3.9	278 - 310	3.9 - 4.2	310 - 334	3.8 - 4.2	30.3 ~ 33.1
NSF-6BF	3.9 - 4.1	0.39 - 0.41	3.5 - 3.8	278 - 303	4.4 - 4.8	350 - 382	3.6 - 4.0	28.5 ~ 31.5
NSF-7BB	4.3 - 4.5	0.43 - 0.45	2.9 - 3.3	230 - 263	3.0 - 3.4	238 - 270	4.4 - 4.8	35.0 ~ 38.2
NSF-7BD	4.2 - 4.4	0.42 - 0.44	3.2 - 3.7	254 - 294	3.4 -3.8	270-302	4.2 - 4.6	33.4 ~ 36.6
NSF-7BE	4.1 - 4.3	0.41 - 0.43	3.5 - 3.9	279 -310	3.9 - 4.2	310 - 334	4.0 - 4.4	31.8 ~ 35.0
NSF-7BF	4.0 - 4.2	0.40 - 0.42	3.5 - 3.8	279 - 302	4.4 - 4.8	350 - 382	3.8 - 4.2	30.2 ~ 33.4
NSF-9BD	4.4 - 4.6	0.44 - 0.46	3.0 - 3.8	238 - 303	3.2 -3.8	254 - 303	4.6 - 5.1	36.6 ~ 40.6
NSF-9BE	4.3 - 4.5	0.43 - 0.45	4.0 - 4.4	318 - 351	4.3 - 4.7	342 - 374	4.4 - 4.9	35.0 ~ 39.0
NSF-9BF	4.2 - 4.4	0.42 - 0.44	3.8 - 4.2	302 - 335	4.8 - 5.2	381 - 414	4.2 - 4.7	33.4 ~ 37.4
NSF-9BG	4.1 - 4.3	0.41 - 0.43	3.7 - 4.2	294 - 335	≥ 5.0	≥ 397	4.0 ~ 4.4	31.5 ~35.0
NSF-12E	4.6 - 4.8	0.46 - 0.48	3.7 - 4.2	294 - 335	≥ 3.9	≥ 310	5.0 ~ 5.4	39.8 ~ 43.0
NSF-12F	4.5 - 4.7	0.45 - 0.47	4.0 - 4.5	318 - 359	≥ 4.3	≥ 342	4.8 ~ 5.2	38.2 ~ 41.4
NSF-12G	4.4 - 4.6	0.44 - 0.46	3.9 - 4.4	310 - 351	≥ 4.8	≥342	4.6 ~ 5.0	36.6 ~ 39.8
